Cambium Networks Configuration for Kiwire Hotspot
Cambium Networks Configuration for Kiwire Hotspot
Prerequisites
Before integrating the controller with Kiwire, it is necessary that the controller and access point:
-
are connected to the Internet
-
are reachable on the network
-
have an IP address assigned to the a through DHCP or static
Note:
-
Kiwire-hostname or Kiwire-ip can be obtain by contacting our technical support for our cloud customer. For enterprise client the ip will be on premises Kiwire ip address.
-
Social network hostname list can be obtained from Social network whitelist guide
Part 1: Cambium cnMaestro configuration
-
Login to your Cambium cnMaestro controller
-
Go to WLANs > Configuration > AAA Servers
-
Authentication Server
-
Host: Kiwire-hostname or Kiwire-Ip
-
Secret: create a secret pass phrase
-
Port: 1812
-
Timeout: 3 seconds
-
Attempts: 1
-
-
Accounting Server
-
Host: Kiwire-hostname or Kiwire-ip
-
Secret: secret same as authentication server
-
Port: 1813
-
Timeout: 3 seconds
-
Attempts: 1
-
Accounting Mode: Start-Interim-Stop
-
Accounting Packet: ticked
-
Interim Update Interval: 1800 seconds
-
-
Advanced Settings
-
NAS-Identifier: AP MAC address with capital letters and colon
-
Dynamic Authorization: ticked
-
Dynamic VLAN: ticked
-
Called Station ID: AP-MAC:SSID
-
-
Omaya 3.0 Administrator > Quick Setup > Dashboard
Documentation
Kiwire 3.0 Administrator > Integration > API
Kiwire 3.0 Administrator - Integration
Integration - API

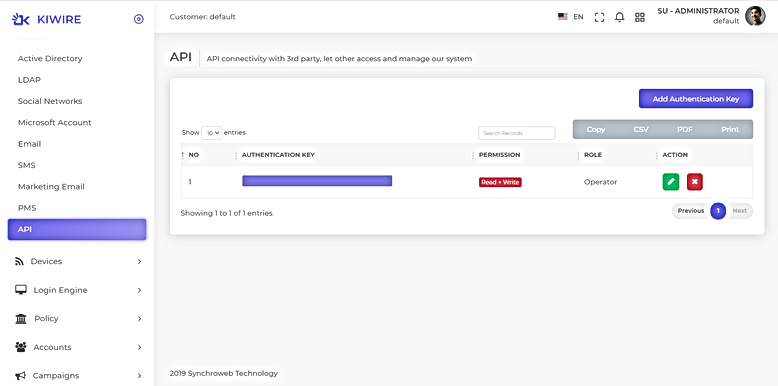

Kiwire has a built-in API (Application Protocol Interface) that let your application connect and manipulate system and retrieve data from your own developed application. For technical information on the Kiwire API specification, please refer to Kiwire API resource. To access the API module click on Integration > API from the navigation. The configuration screen will be displayed. This includes main and permission for Kiwire platform.
The field and its function description is listed below.
ADD NEW AUTHENTICATION KEY
Click on “Add Authentication Key” button and populate the required fields. Fill in the field with relevant information to complete the process.
The field and its function description is listed below.
EDIT OR DELETE authentication key
Click the edit icon on the listing screen to edit the setting of the authentication key. The edit screen be display which you can edit the setting of the authentication key. Click on the delete icon to delete the authentication key. A prompt will be displayed to ask for your confirmation to proceed to delete the authentication key. Please exercise with caution as this, not a reversible action.
